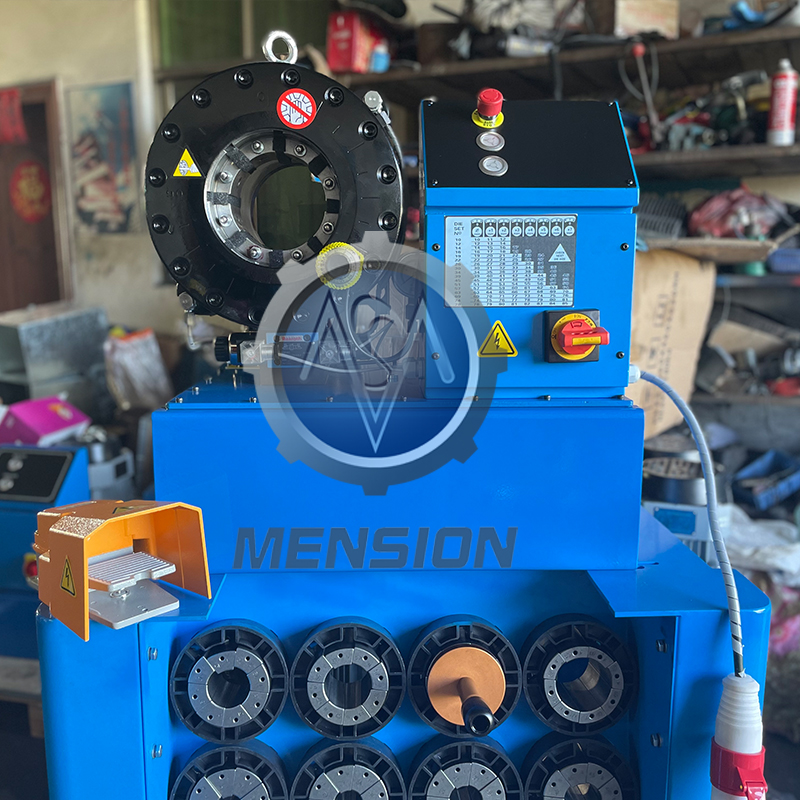

Workshop Hose Crimping Machine P32 Hydraulic Hose Pressing Machine

  • 1
  • 2

Brand Name : MENSION

Model Number : P32

Certification : CE RoHS

Place of Origin : CN

MOQ : 1 Set

Price : Contact Us

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 1000 Sets Per Month

Delivery Time : 2 - 7 Working Days

Packaging Details : One Plywood For One Set

Type : Hose Crimping Machine

Other Name : Pipe Press

Crimping Range : 1/4'' to 2.5''

Scale Accuracy : 0.01mm

Control System : MS

Crimping Dies : 13 Sets

Product Name : P32 Cable Crimping Machine

Application : Repair Hose Workshop

System Pressure : 31.5Mpa

Oil Tank : 50L

Size : 650*550*1360mm

Weight : 310Kg

Contact Now

P32 WORKSHOP HOSE CRIMPING MACHINE

DESCRIPTION

P32 hose crimper is designed with human structure. It is very suitable for hydraulic hose from 6mm to 51mm crimping and also for industrial pipe and cables up to 3 inch pressing.

Due to it's high efficiency and high accuracy, it has been one of the best selling hydraulic pipe pressing machine in recent years. Customized die sets for brake hoses, air conditioner hoses are available.

ADVANTAGES

1. Famous electric system, high stability.
2. Rexroth Germany hydraulic system, long service life time.
3. User-friendly design, very easy to start new business with it.
4. Verticle movement for master die, high accuracy.

TECHNICAL DATA

Model

P32 Crimping Machine For Rubber Hose

Crimping Range

14 - 87 (mm)

Crimping Force

650 (T)

Hose Size

1/4 - 2.5 (inch)

Max. Opening

31 (mm)

Die Sets

13

Die Set Type

P32

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

220 (V)

Motor Power

3 (KW)

Length

650 (mm)

Width

550 (mm)

Height

1360 (mm)

Weight

310 (KG)

Workshop Hose Crimping Machine P32 Hydraulic Hose Pressing Machine

P32 HOSE CRIMPER DIE SETS

Die No.

Crimping Range

 Length

6 *

6 ... 8mm

 55mm

8 *

8 ... 10mm

 55mm

10 *

10 ... 12mm

 55mm

12 *

12 ... 14mm

 55mm

14

14 ... 16mm

 55mm

16

16 ... 19mm

 55mm

19

19 ... 22mm

 55mm

22

22 ... 26mm

 70mm

26

26 ... 30mm

 70mm

30

30 ... 34mm

 70mm

34

34 ... 39mm

 75mm

39

39 ... 45mm

 75mm

45

45 ... 51mm

 90mm

51

51 ... 57mm

 90mm

57

57 ... 63mm

 100mm

63

63 ... 69mm

 110mm

69

69 ... 74mm

 110mm
74 * 74 ... 78mm 110mm
78 * 78 ... 87mm 110mm

NOTE

• " * " for non standard die sets

• Customized die sets are available

• Special voltage 110V, 208V, 240V, 415V are availbale

OPTIONAL

• UC control system

• Position limit device

Workshop Hose Crimping Machine P32 Hydraulic Hose Pressing Machine

CRIMPING APPLICATIONS FOR THE P32 HYDRAULIC HOSE CRIMPING MACHINE

Workshop Hose Crimping Machine P32 Hydraulic Hose Pressing Machine
