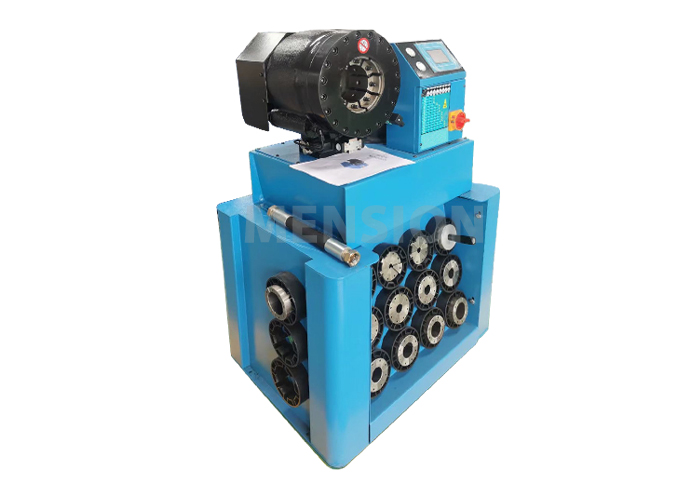

HYDRAULIC HOSE CRIMPING MACHINE NC130
DESCRIPTION
Designed with industry-leading expertise, the NC130 is a powerhouse that takes hose crimping to new heights. Its robust construction and advanced technology enable seamless crimping of various hose types, providing secure and leak-free connections.
With a user-friendly interface and intuitive controls, the NC130 empowers operators to effortlessly create accurate and consistent crimps, boosting efficiency and saving valuable time. Whether it's for hydraulic systems, industrial applications, or automotive needs, the NC130 ensures unmatched reliability and performance. Elevate your hose assembly operations with the NC130, the go-to choice for excellence in crimping.
ADVANTAGES
Certainly! Here are four advantages of a CNC-controlled hose crimping machine:
1. Precision and Consistency:
CNC control allows for precise and repeatable crimping results, ensuring consistent quality in every hose assembly. The machine follows programmed instructions with accuracy, eliminating human error and producing reliable connections.
2. Time and Labor Efficiency:
CNC automation significantly reduces the time and labor required for hose crimping. The machine can perform complex crimping tasks quickly and efficiently, allowing operators to focus on other essential tasks and increasing overall productivity.
3. Versatility:
CNC-controlled machines are versatile and can handle a wide range of hose sizes, types, and materials. They can accommodate various industry requirements and adapt to changing production needs, making them suitable for diverse applications.
4. Ease of Use:
CNC-controlled hose crimping machines often come with user-friendly interfaces and intuitive controls. Programming and operating the machine are simplified, enabling operators to quickly learn and utilize its functionalities, resulting in smoother operations and reduced training time.
These advantages make CNC-controlled hose crimping machines a valuable asset for industries that rely on efficient and accurate hose assembly processes.
TECHNICAL DATA
| Model | NC130 Hydraulic Crimping Hose Machine |
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 650 (T) |
| Hose Size | 1/4 - 2.5 (inch) |
| Max. Opening | 31 (mm) |
| Die Sets | 13 |
| Die Set Type | P32 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 380 (V) |
| Motor Power | 3.75 (KW) |
| Length | 650 (mm) |
| Width | 550 (mm) |
| Height | 1360 (mm) |
| Weight | 310 (KG) |
P32 CRIMPER DIE SETS
| Die No. | Crimping Range | Length |
| 6* | 6 - 8mm | 55 |
| 8* | 8 - 10mm | 55 |
| 10* | 10 - 12mm | 55 |
| 12* | 12 - 14mm | 55 |
| 14 | 14 - 16mm | 55 |
| 16 | 16 - 19mm | 55 |
| 19 | 19 - 22mm | 55 |
| 22 | 22 - 26mm | 70 |
| 26 | 26 - 30mm | 70 |
| 30 | 30 - 34mm | 70 |
| 34 | 34 - 39mm | 75 |
| 39 | 39 - 45mm | 75 |
| 45 | 45 - 51mm | 90 |
| 51 | 51 - 57mm | 90 |
| 57 | 57 - 63mm | 100 |
| 63 | 63 - 69mm | 110 |
| 69 | 69 - 78mm | 110 |
NOTE
- * for non standard die sets;
- Customized die sets are available;
- Special voltage 110V, 208V, 240V, 415V are availbale;

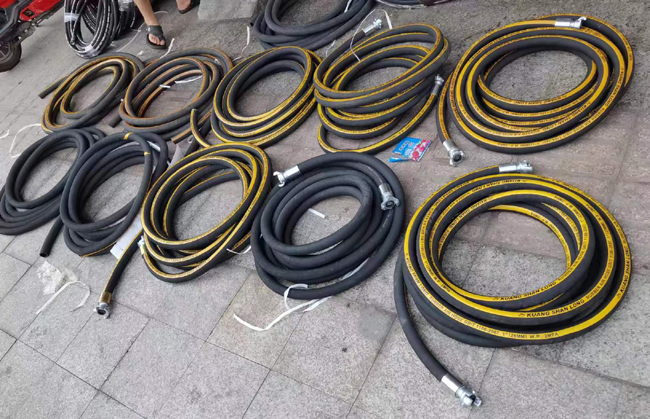

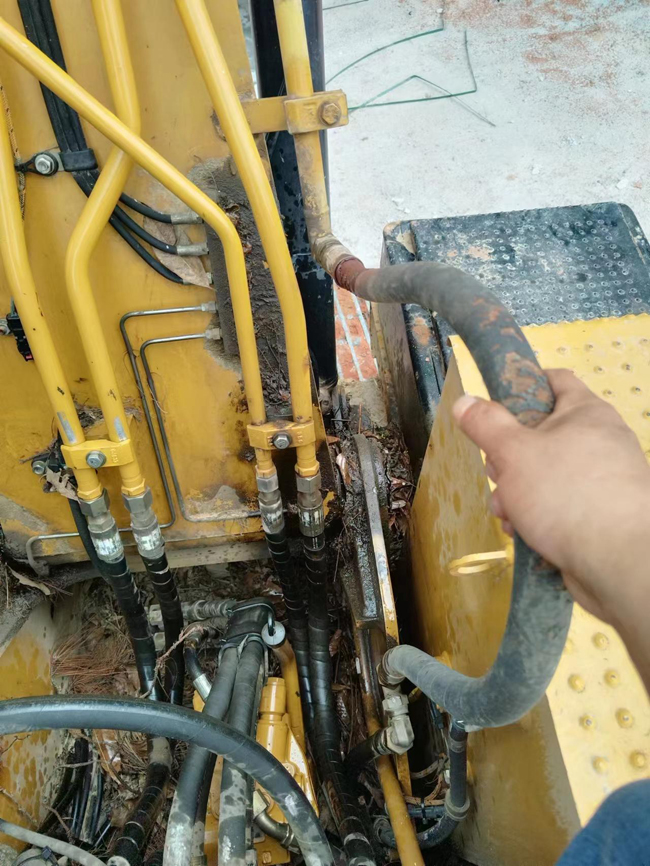

► APPLICATION SHOW
Hose crimping machines find applications in various industries where hoses are used. Here are some common fields where hose crimping machines are employed:
1. Manufacturing and Industrial: Hose crimping machines are extensively used in manufacturing sectors such as automotive, aerospace, machinery, and equipment production. They are used to crimp hoses for fluid transfer, hydraulic systems, pneumatic systems, and other industrial applications.
2. Construction and Infrastructure: In the construction industry, hose crimping machines are utilized for crimping hoses used in concrete pumping, foundation work, tunneling, and other construction-related activities. These machines ensure secure connections and reliable fluid transfer in heavy-duty construction equipment.
3. Agriculture and Farming: Hose crimping machines are employed in the agricultural sector for crimping hoses used in irrigation systems, sprayers, fertilizers, and other farming equipment. They help ensure leak-free connections and efficient fluid distribution in agricultural operations.
4. Oil and Gas: In the oil and gas industry, hose crimping machines are essential for crimping hoses used in drilling operations, offshore platforms, oil refineries, and pipelines. These machines enable safe and reliable fluid transfer in demanding oil and gas applications.
5. Transportation and Automotive: Hose crimping machines play a crucial role in the transportation and automotive sectors. They are used for crimping hoses in vehicles, including cars, trucks, buses, and specialized vehicles like fire engines and ambulances. These machines ensure secure connections for fuel lines, brake systems, and other fluid-carrying applications.
6. Marine and Shipbuilding: In the maritime industry, hose crimping machines are utilized for crimping hoses used in shipbuilding, offshore vessels, and maritime equipment. These machines ensure reliable fluid transfer in marine environments, including hydraulic systems, fuel lines, and cooling systems.
These are just a few examples of the wide-ranging application fields of hose crimping machines, highlighting their importance in various industries where secure and efficient hose connections are required.
