Automotive Car Hose Crimping Machine P32 Hydraulic Pipe Crimper For Sale

Name: Automotive Car Hose Crimping Machine P32 Hydraulic Pipe Crimper For Sale
Brand: MENSION
Price: 1 USD

China Automotive Car Hose Crimping Machine P32 Hydraulic Pipe Crimper For Sale wholesale

Brand Name : MENSION

Model Number : MS-SP52

Certification : CE RoHS

Place of Origin : CN

MOQ : 1 Set

Price : Contact Us

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Sets Per Month

Delivery Time : 2 - 7 Working Days

Packaging Details : One Plywood For One Set

Crimping Range : 14 - 87mm

Hose Size : 1/4 - 2inch

Die Sets : 10

Color : Blue

Max. Opening : 30mm

Crimping Force : 500T

Product Name : MS-SP52 Hydraulic Hose Crimping Machine

Application : Workshop

System Pressure : 31.5Mpa

Power : 3KW

Size : 670*430*820mm

Weight : 260Kg

Contact Now

Automotive Car Hose Crimping Machine SP52 With Precise Swage Size Control

HYDRAULIC HOSE CRIMPING MACHINE MS - SP52

DESCRIPTION

MS-SP52 hose crimper supports crimp and swage hydraulic pressure hose assemblies, automotive air conditioner hose, cable wires up to 2 inch (51mm). With cylinder on the outside design, the machine is more convenient for daily maitenance.

MAIN FEATURES

1. Advanced crimping technology meet EU standard;

2. Wide applications;

3. High accuracy;

4. Quick working speed;

TECHNICAL DATA

Model	MS - SP52 AC Hose Crimping Machine
Crimping Range	14 - 87 (mm)
Crimping Force	500 (T)
Hose Size	1/4 - 2 (inch)
Max. Opening	30 (mm)
Die Sets	10
Die Set Type	52
System Pressure	31.5 (Mpa)
Accuracy	0.01 (mm)
Control	MS
Standard Voltage	220 (V) / 380 (V)
Motor Power	3 (KW)
Length	670 (mm)
Width	430 (mm)
Height	820 (mm)
Weight	260 (KG)

Automotive Car Hose Crimping Machine P32 Hydraulic Pipe Crimper For Sale

52 CRIMPER DIE SETS

Die No.	Crimping Range	Length
6*	6 - 8 mm	35
8*	8 - 10 mm	35
10*	10 - 12 mm	35
12*	12 - 15 mm	35
14	14 - 16 mm	60
16	16 - 20 mm	60
20	20 - 22 mm	60
22	22 - 26 mm	60
26	26 - 30 mm	60
30	30 - 38 mm	70
38	38 - 46 mm	70
46	46 - 54 mm	70
54	54 - 64 mm	80
64	64 - 69 mm	80
69*	69 - 76 mm	100

NOTE

- * for non standard die sets;

- Customized die sets are available;

- Special voltage 110V, 208V, 240V, 415V are availbale;

OPTIONAL

- Quick Change Tool

- Quick Change Die Set Rack;

Product Tags:

Automotive Car Hose Crimping Machine

EU Standard Hose Crimper

Blue AC Hose Crimping Machine

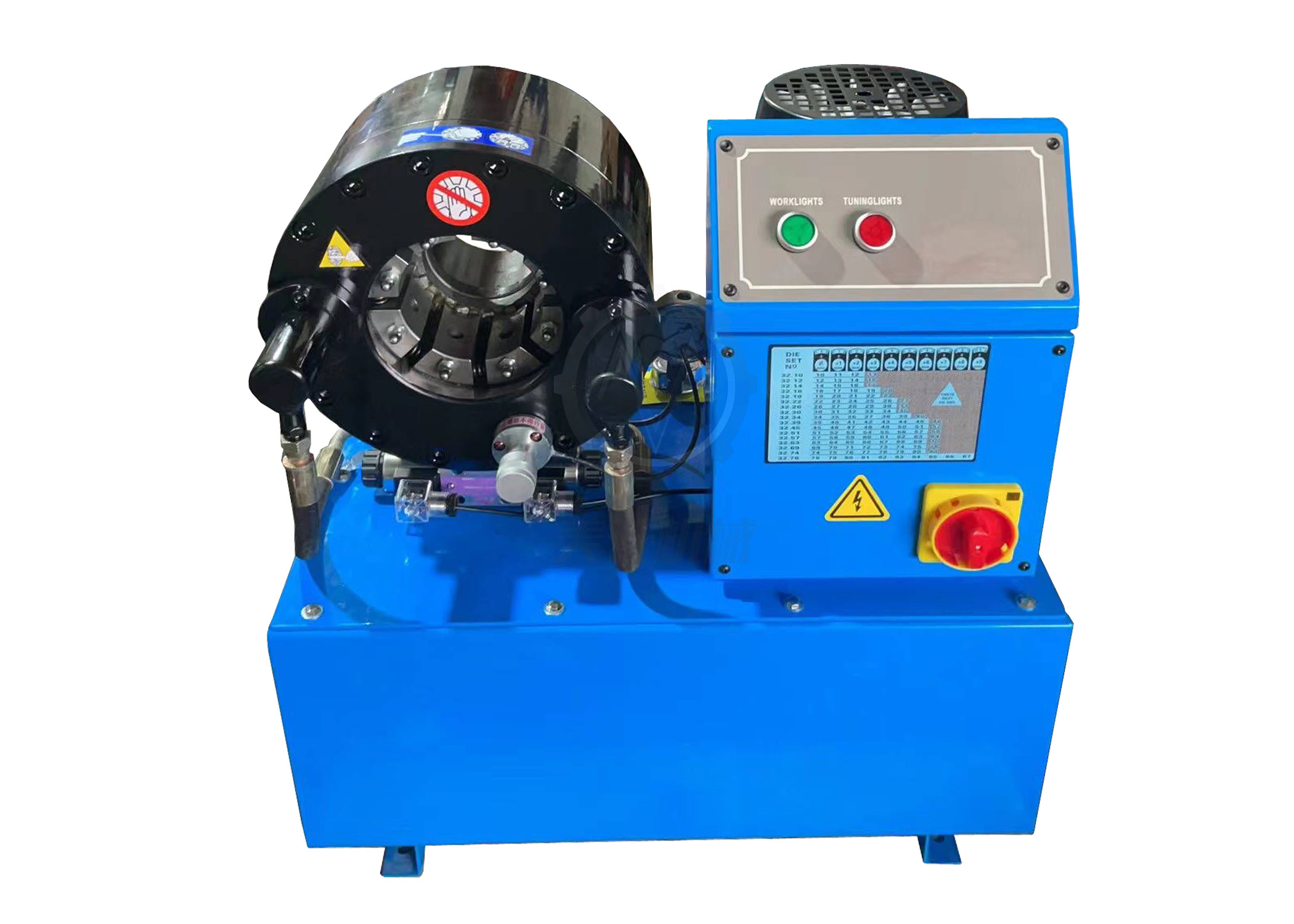

Automotive Car Hose Crimping Machine P32 Hydraulic Pipe Crimper For Sale Images
