Movable Wheel Hose Cutting Machine Hydraulic Hose Making Machine

Name: Movable Wheel Hose Cutting Machine Hydraulic Hose Making Machine
Brand: MENSION
Price: 1 USD

China Movable Wheel Hose Cutting Machine Hydraulic Hose Making Machine wholesale

Brand Name : MENSION

Model Number : MS-51CS

Certification : CE ROHS

Place of Origin : CN

MOQ : 1 set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Sets Per Month

Delivery Time : 2 - 7 Working Days

Packaging Details : One Plywood For One Set

Price : Contact Us

Hose Size : 1/4''-2''

Cutting Blade : 1 pcs

Skiving Mandrel : 10 pcs

Color : Blue

Cutting Speed : 2700rpm

Skiving Speed : 500r/min

Dimension : 680*650*1050mm

Weight : 90KG

Contact Now

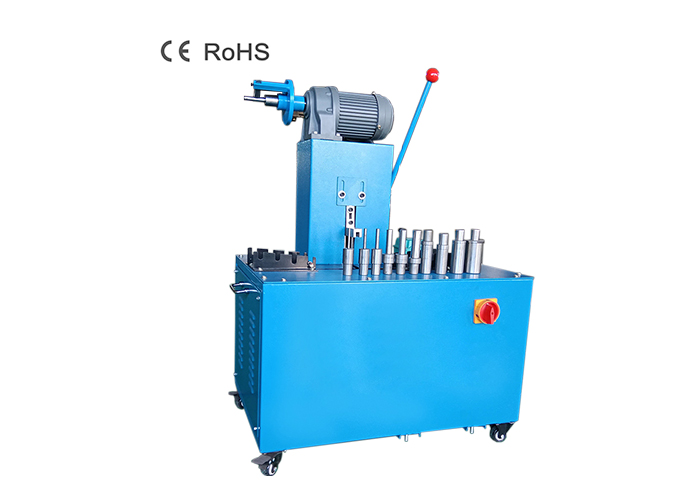

HOSE CUTTING MACHINE MS-51CS

DECRIPTION

MS-51CS is a hose cutting machine which also have the ability to strip hose rubber. It has big power, so that it can cut hydraulic stainless steel braided hose up to 2inch 4 wire.

ADVANTAGES

1. Movable wheel to make the machine more convenient to move;

2. Human design handle, save opetator power;

3. Scale on the skiving tool, easy to adjust the skiving depth;

4. High quality copper wire aluminium motor, no heat exceed even afetr using for a long time.

TECHNICAL DATA

Model	MS-51CS Hose Cutting Machine
Hose Size	1/8'' - 2''
Cutting Speed	2700 (rpm)
Cutting Blade	350*32 (mm)
Cutting Blade No.	1 (pcs)
Skiving Speed	500 (r/min)
Skiving Mandrel	10 (pcs)
Length	680 (mm)
Width	650 (mm)
Height	1050 (mm)
Weight	90 (kg)

Movable Wheel Hose Cutting Machine Hydraulic Hose Making Machine

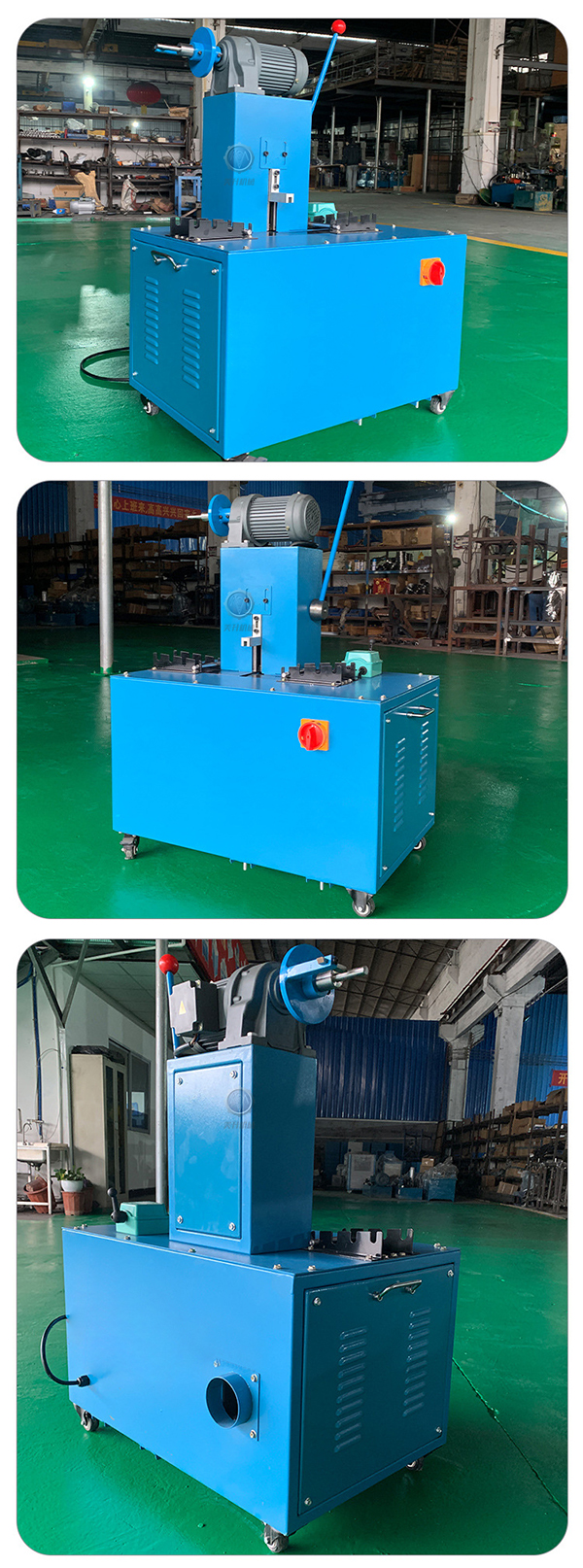

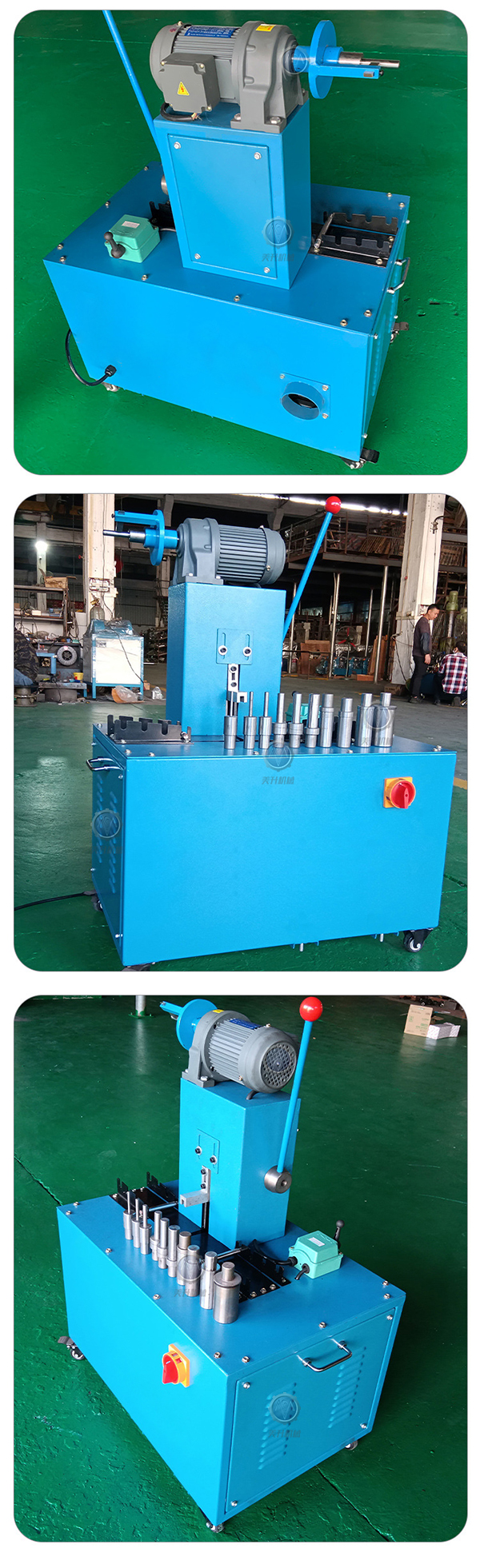

► PICTURES

Movable Wheel Hose Cutting Machine Hydraulic Hose Making Machine

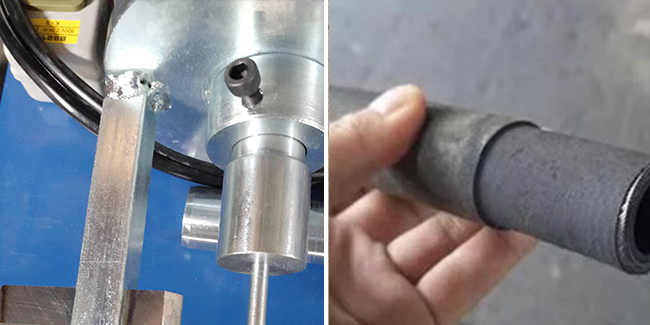

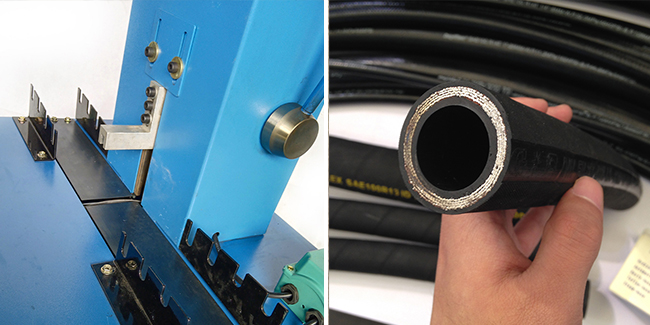

► APPLICATION

51CS is hose cutting machine which also have fucntion of hose rubber stripping. It is an essential device for hose assembly making before crimping. Cutting is to cut the hose to the needed length for hydraulic system connecting, skiving is to strip the inner or out rubber layer, so that the stainless steel braided hose can be connect well with ferrule and fittings.

Movable Wheel Hose Cutting Machine Hydraulic Hose Making Machine
