Weifang Mension Machinery Technology Co., Ltd.

Contact Now

High Pressure Hydraulic Hose Crimping Tool Finn Power Swager Hydraulic Fitting Crimper

Name: High Pressure Hydraulic Hose Crimping Tool Finn Power Swager Hydraulic Fitting Crimper
Brand: MENSION
Price: 1 USD

China High Pressure Hydraulic Hose Crimping Tool Finn Power Swager Hydraulic Fitting Crimper wholesale

Brand Name : MENSION

Model Number : MS-P150

Certification : CE RoHS

Place of Origin : CN

MOQ : 1 Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Sets Per Month

Delivery Time : 2 - 7 Working Days

Packaging Details : One Plywood For One Set

Price : Contact Us

Crimping Range : 14 - 87mm

Hose Size : 1/4 - 2 1/2inch

Die Sets : 14

Color : Grey and Orange

Max. Opening : 61mm

Crimping Force : 380T

Product Name : P150 Hose Pressing Machine

Application : Workshop

System Pressure : 31.5Mpa

Power : 3.75KW

Size : 720*970*1600mm

Weight : 1020Kg

Contact Now

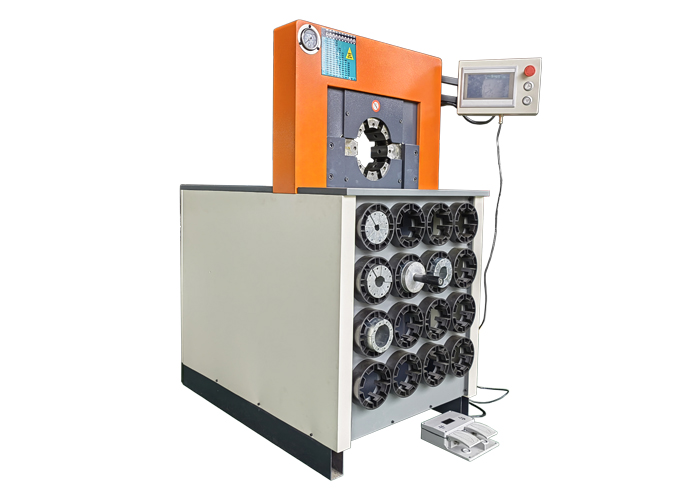

FLEXIBLE HOSE PRESSING MACHINE MS-P150

DESCRIPTION

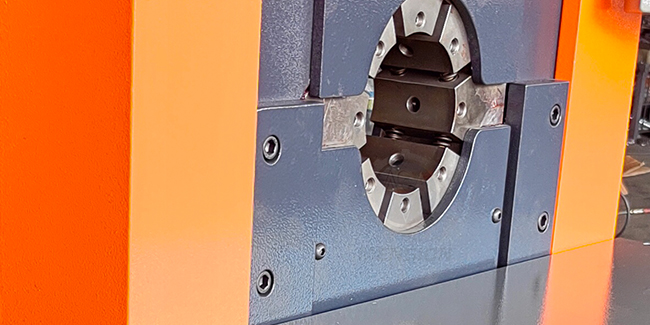

MS-P150 hydraulic crimping hose machine is famous for its larged crimping size and big fed capacity. It is with a super thin crimping head, so even the bends fittings can be fed in.

ADVANTAGES

1. Die sets with high hardness;

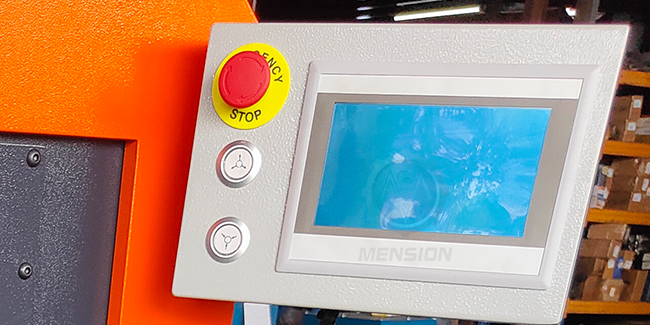

2. Advanced CNC control system, high stability;

3. Quick change for die sets, high efficiency.

TECHNICAL DATA

Model	MS-P150 Hose Crimper Machine
Crimping Range	14 - 87 (mm)
Crimping Force	380 (T)
Hose Size	1/4 - 2 1/2 (inch)
Max. Opening	61 (mm)
Die Sets	14
Die Set Type	P150
System Pressure	31.5 (Mpa)
Accuracy	0.01 (mm)
Control	UC
Standard Voltage	220 (V) / 380 (V)
Motor Power	3.75 (KW)
Length	720 (mm)
Width	970 (mm)
Height	1600 (mm)
Weight	1020 (KG)

High Pressure Hydraulic Hose Crimping Tool Finn Power Swager Hydraulic Fitting Crimper

P150 HOSE CRIMPER DIE SETS

Die No.	Crimping Range	Length
6*	6 - 8mm	55
8*	8 - 10mm	55
10*	10 - 12mm	55
12*	12 - 14mm	55
14	14 - 16mm	55
16	16 - 19mm	55
19	19 - 22mm	55
22	22 - 26mm	70
26	26 - 30mm	70
30	30 - 34mm	70
34	34 - 39mm	75
39	39 - 45mm	75
45	45 - 51mm	90
51	51 - 57mm	90
57	57 - 63mm	100
63	63 - 69mm	110
69	69 - 74mm	110
74	74 - 80mm	110
78*	78 - 87mm	110

NOTE

- * for non standard die sets;

- Customized die sets are available;

- Special voltage 110V, 208V, 240V, 415V are availbale;

High Pressure Hydraulic Hose Crimping Tool Finn Power Swager Hydraulic Fitting Crimper
